How DMX Controls Revolutionize Professional Moving Head Lighting

September 16, 2025 at 10:37 pm, No comments

Professional lighting is no longer just about illuminating a stage—it’s about creating experiences, moods, and dynamic visual storytelling. Among the most transformative innovations in stage lighting is the professional moving head light, controlled via DMX systems. DMX, short for Digital Multiplex, has revolutionized how lighting designers, event planners, and stage technicians manage complex lighting setups, allowing for precise control over every beam, color, and movement.

By integrating DMX with moving head lights, professionals can execute intricate shows with synchronized effects, automated transitions, and highly customizable programming. Rasha Professional - professional stage lighting and manufacturer, has been at the forefront of this innovation, providing high-quality, reliable moving head fixtures that leverage DMX control for maximum creative potential.

In this article, we explore how DMX controls are changing the professional lighting landscape, from setup basics to advanced applications, helping professionals elevate their craft with efficiency and precision.

What is DMX Control?

Understanding DMX512 Protocol

The backbone of professional moving head lighting is the DMX512 protocol, a standardized method of digital communication for stage lighting and effects. DMX512 allows up to 512 channels per universe, each representing a controllable attribute of a fixture, such as intensity, color, pan, tilt, gobo patterns, or strobe rate.

In practical terms, DMX converts a lighting console’s instructions into a digital signal, which travels over a cable to each connected fixture. This allows designers to manipulate multiple lights simultaneously, creating synchronized scenes that would be impossible manually.

For example, a concert lighting designer can program a moving head light to sweep across the stage while changing color and strobing in rhythm with music—all via a single DMX console.

Key fact: Over 80% of professional stage lighting setups globally utilize DMX control due to its versatility, reliability, and scalability.

How DMX Works

DMX uses a unidirectional serial data stream, meaning the controller sends data downstream to fixtures. Each fixture has an address (channel) that determines which DMX signals it responds to. A single DMX universe can control multiple devices, and complex shows can integrate multiple universes for large-scale events.

DMX is compatible with a wide range of fixtures, including LED moving head lights, spotlights, wash lights, and effect units, making it the industry standard for intelligent lighting control.

Components of a DMX System

A functional DMX setup relies on several critical components:

DMX Controller / Console

The DMX controller is the brain of the system. It sends programmed instructions to each fixture, determining attributes like intensity, color, movement, and special effects. Controllers range from simple 12-channel units for small setups to advanced 1024-channel consoles for large productions.

Example: A Rasha Professional DMX console can manage multiple moving head fixtures simultaneously, enabling seamless light transitions and effects.

DMX Cables and Splitters

DMX uses 3-pin or 5-pin XLR cables to transmit data. Proper cabling ensures signal integrity and prevents dropouts in multi-fixture setups. Splitters allow one controller to send signals to multiple fixtures without data loss.

Professional Moving Head Lights

These fixtures are motorized, intelligent lights capable of dynamic pan, tilt, zoom, color mixing, and gobo projection. DMX control transforms moving heads from static lights into versatile tools for immersive stage experiences.

Rasha Professional manufactures LED moving head lights with precise DMX channel mapping, high reliability, and advanced features for professional applications.

Accessories and Software

Lighting software: Programs like MA Lighting or LightJockey allow pre-visualization, scene creation, and automated cues.
Wireless DMX transmitters: Reduce cable clutter and enable flexible setups.

Advantages of Using DMX with Professional Moving Head Lights

DMX control systems unlock numerous benefits for lighting professionals:

Flexibility and Precision

DMX allows fine-tuned control of every parameter: intensity, color temperature, beam angle, pan, tilt, gobo, strobe, and more. Professionals can create exact lighting moods tailored to the event.

Example: A Rasha Professional LED moving head can transition from a sweeping blue wash to a sharp white spotlight with precise timing, enhancing the audience’s experience.

Automation and Efficiency

DMX eliminates manual adjustments, reducing setup time and human error. Scenes can be pre-programmed, and multiple fixtures can operate in perfect sync.

Creative Freedom

Designers can experiment with complex effects, including:

Color chases and fades
Strobe effects synchronized with music
Patterned gobos projected across stages
Automated scene transitions for live events

Scalability

DMX supports hundreds of fixtures per universe, and multiple universes can be combined for large venues like concert arenas, theaters, or festivals.

Reliability

Professional DMX systems are robust and stable, ensuring consistent performance in live environments. Rasha Professional fixtures are tested for high reliability under rigorous conditions, making them suitable for large-scale shows.

Practical Setup Tips for DMX-Controlled Moving Head Lights

Setting up DMX-controlled moving head lights requires careful planning:

Step 1: Assign DMX Addresses

Each fixture must have a unique DMX address. This tells the controller which channels correspond to each light.

Step 2: Connect Fixtures via DMX Cable

Daisy-chain lights using 3-pin or 5-pin XLR cables. Avoid T-junctions to prevent signal reflection. Use a DMX terminator on the last fixture to prevent data errors.

Step 3: Configure Controller

Map channels in the console to correspond with fixture attributes. Test each function individually before running automated scenes.

Step 4: Program Scenes and Cues

Use pre-visualization software or the console interface to design cues, transitions, and effects. Sync with audio or video for integrated experiences.

Step 5: Test and Troubleshoot

Ensure all fixtures respond to DMX commands.
Check for flickering or unresponsive channels.
Adjust cable layout if necessary.

Pro Tip: Rasha Professional’s manuals provide detailed DMX mapping guides for quick setup and troubleshooting.

Innovations and Future of DMX in Stage Lighting

DMX continues to evolve alongside lighting technology:

Wireless DMX

Wireless DMX allows flexible stage design without cumbersome cabling, ideal for touring productions or temporary setups.

Integration with Smart Lighting

Modern DMX systems integrate with intelligent lighting networks, apps, and IoT devices, enabling remote control and real-time scene adjustments.

LED Moving Head Lights

LED fixtures, such as those from Rasha Professional, reduce power consumption, increase fixture lifespan, and provide more vibrant colors and effects compared to traditional discharge lamps.

Advanced Programming Tools

Software now allows pre-visualization in 3D environments, predictive cue simulation, and advanced automation, helping designers optimize performances before arriving at the venue.

FAQs: DMX and Moving Head Lighting

1. How many DMX channels does a moving head light need?
It depends on fixture features. Simple moving heads may use 8–16 channels, while advanced RGB LED heads can require 20–32 channels for color, pan/tilt, gobo, strobe, and effects.

2. Can I control multiple moving head lights with one console?
Yes, as long as the fixtures are on unique addresses within the same DMX universe. For larger setups, multiple universes or DMX splitters are recommended.

3. What is the difference between DMX512 and standard lighting control?
DMX512 is a digital protocol that allows precise, synchronized control of multiple fixtures. Standard analog dimmers cannot manage multiple intelligent lights or complex effects.

4. Can DMX control be wireless?
Yes. Wireless DMX transmitters and receivers enable cable-free setups while maintaining signal integrity.

5. How does Rasha Professional ensure reliable DMX performance?
Rasha Professional uses industrial-grade components, rigorous testing, and standardized DMX channel mapping for consistent performance under live event conditions.

6. Can I mix moving heads from different manufacturers on the same DMX network?
Yes, provided they follow DMX512 standards, but it’s advisable to standardize channels and test compatibility to avoid conflicts.

7. How can I synchronize lighting effects with music?
Using DMX software or a lighting console, you can program cues to match tempo, beats, or audio triggers, creating dynamic audio-visual experiences.

8. What maintenance is required for DMX-controlled moving head lights?
Regular cleaning, firmware updates, cable inspections, and testing all DMX channels ensure long-term reliability.

9. Can DMX control non-lighting devices?
Yes. DMX can control fog machines, lasers, moving props, and other stage effects compatible with the protocol.

10. What are common mistakes to avoid?

Duplicate DMX addresses
Improper cabling or missing terminators
Overloading a single DMX universe
Not pre-programming or testing cues

Case Study: Rasha Professional in Action

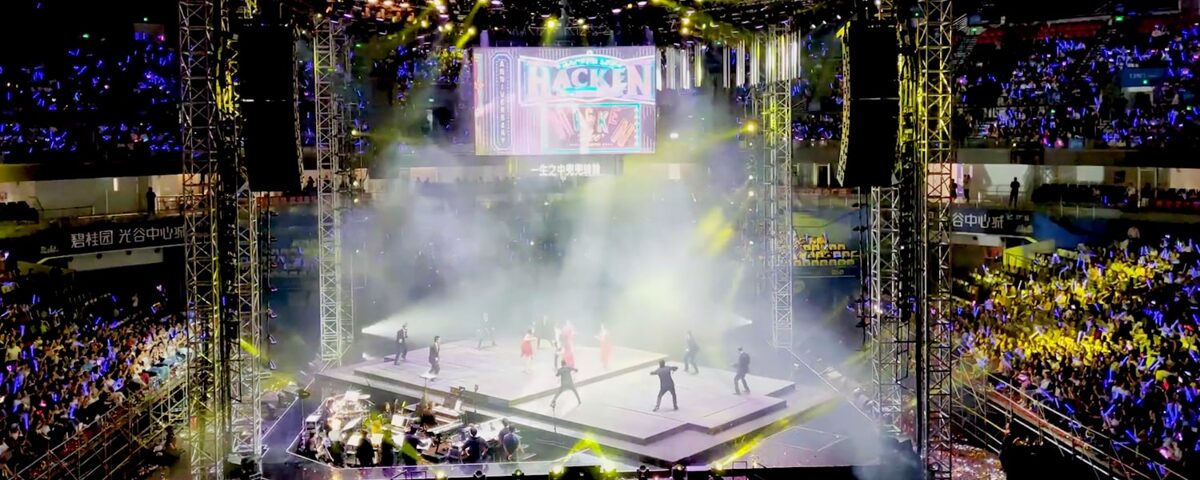

At a recent large-scale concert, Rasha Professional moving head lights were used in a fully DMX-controlled setup:

Venue: 10,000-seat arena
Fixtures: 50 LED moving head spotlights
DMX universes: 2, totaling 512 channels
Result: Fully synchronized light show with automated color chases, dynamic gobos, strobe effects, and music synchronization

The system allowed seamless transitions, minimized manual intervention, and elevated the audience’s visual experience, highlighting how DMX control maximizes professional moving head light potential.

Conclusion

DMX control systems have fundamentally transformed professional moving head lighting, enabling precision, automation, creativity, and efficiency in stage design. From small clubs to large arenas, DMX empowers lighting professionals to design intricate, synchronized shows that captivate audiences.

Rasha Professional - professional stage lighting and manufacturer continues to lead the industry by providing high-quality, reliable, and innovative moving head fixtures optimized for DMX integration. By combining advanced technology with creative flexibility, Rasha Professional ensures every stage lighting setup achieves its full potential.

Investing in DMX-controlled moving head lights is not just a technical choice—it’s a commitment to elevating the visual experience of every performance.
