Fire Alarm System Installation Guide: Everything You Need to Know
November 7, 2025 at 12:57 pm,
No comments
When it comes to protecting your property and ensuring the safety of its occupants, few systems are as critical as a properly installed fire alarm system. Whether you're a homeowner, business owner, or facility manager, understanding the intricacies of fire alarm installation can mean the difference between early detection and catastrophic loss. This comprehensive guide will walk you through everything you need to know about fire alarm system installation, including crucial aspects of smoke detector installation , integration with modern technology, and compliance with current fire safety codes.In today's interconnected world, fire alarm systems have evolved far beyond simple smoke detectors. Modern installations often incorporate av system integration software, allowing for seamless communication between fire detection systems, building automation, and emergency response protocols. This guide will explore both traditional and cutting-edge approaches to ensure your fire protection system provides maximum safety and reliability.
The Critical Importance of Fire Alarm System Installation
Why Professional Fire Alarm Installation Matters
Fire alarm system installation is not merely a regulatory requirement—it's a life-saving investment that protects people, property, and business continuity. According to the National Fire Protection Association (NFPA), properties equipped with properly functioning fire alarm systems experience significantly reduced fire-related casualties and property damage. The importance of professional installation cannot be overstated, as improper setup can lead to false alarms, system failures, or, worse yet, undetected fires.Legal and Insurance Implications
Most jurisdictions require fire alarm systems in commercial buildings, multi-family residences, and increasingly in single-family homes. Building codes and fire safety regulations mandate specific types of systems based on occupancy classification, building size, and use. Furthermore, insurance companies often provide substantial premium reductions for properties with certified fire detection systems, while improper installation can void coverage or lead to claim denials.Protection Beyond Fire Detection
Modern fire alarm systems serve multiple critical functions:- Early warning through smoke detector installation and heat detection
- Automatic notification to emergency services
- Integration with sprinkler systems and fire suppression equipment
- Building evacuation coordination through emergency notification systems
- Documentation for fire investigations and insurance claims
Understanding Fire Alarm System Components
Core Detection Devices
Smoke Detectors and Sensors
The foundation of any fire alarm system begins with proper smoke detector installation. Modern smoke detectors come in several varieties:- Ionization Smoke Detectors: Excel at detecting fast-flaming fires with minimal smoke
- Photoelectric Smoke Detectors: Superior at identifying slow-smoldering fires
- Dual-Sensor Smoke Detectors: Combine both technologies for comprehensive protection
- Aspirating Smoke Detection (ASD): Ultra-sensitive systems for high-value assets
Smoke detector installation requires careful consideration of placement, spacing, and environmental factors to ensure optimal performance and minimize false alarms.
Heat Detectors
Heat detection devices complement smoke detectors in areas where smoke detection isn't practical, such as kitchens, garages, or dusty environments. Types include:
- Fixed temperature heat detectors
- Rate-of-rise heat detectors
- Combination heat/smoke detectors
Manual Pull Stations
Manual fire alarm pull stations provide occupants with immediate means to trigger the fire alarm system when they discover a fire before automatic detection occurs.
Control and Processing Units
Fire Alarm Control Panel (FACP)
The fire alarm control panel serves as the system's brain, processing signals from detection devices, controlling notification appliances, and communicating with monitoring stations. Modern panels feature:
- Addressable device identification
- Event logging and history
- Integration capabilities with building management systems
- Support for av system integration software
Notification Appliances
Audible and visual notification devices alert building occupants to emergencies:
- Horns and sirens
- Strobes and LED indicators
- Voice evacuation systems
- Mass notification systems
Pre-Installation Planning and Assessment
Site Survey and Risk Assessment
Before any fire alarm system installation begins, conduct a comprehensive fire risk assessment:- Building Layout Analysis: Document floor plans, ceiling heights, and architectural features
- Occupancy Classification: Determine NFPA occupancy types and requirements
- Hazard Identification: Identify potential fire sources and high-risk areas
- Environmental Considerations: Account for temperature, humidity, dust, and airflow
- Existing Systems Review: Assess compatibility with sprinkler systems, HVAC, and other building systems
Code Compliance Research
Understanding applicable codes is essential:- NFPA 72: National Fire Alarm and Signaling Code
- International Building Code (IBC)
- International Fire Code (IFC)
- Local fire marshal requirements
- Americans with Disabilities Act (ADA) compliance
System Design Considerations
A professional fire alarm system design must address:- Detection device placement and spacing per NFPA 72 requirements
- Notification appliance coverage ensuring adequate sound and visibility
- Circuit design for reliability and fault tolerance
- Integration with access control systems, security systems, and av system integration software
- Power supply calculations including backup battery capacity
Step-by-Step Fire Alarm Installation Process
Phase 1: Preparation and Documentation
Obtaining Permits and Approvals
Secure necessary permits from the local fire authority and building department. Submit:
- Fire alarm system drawings
- Equipment specifications
- Installation timeline
- Contractor licensing documentation
Material Procurement
Order UL-listed or FM-approved equipment:
- Fire alarm control panel
- Detection devices for smoke detector installation
- Notification appliances
- Wiring and conduit
- Backup power supplies
- Testing equipment
Phase 2: Physical Installation
Installing the Control Panel
The fire alarm control panel installation requires:
- Location Selection: Choose a protected, accessible area meeting code requirements
- Mounting: Secure to wall studs or backing board at proper height
- Power Connection: Install dedicated circuit with proper disconnects
- Grounding: Ensure proper electrical grounding per NEC requirements
Smoke Detector Installation and Device Placement
Proper smoke detector installation follows these guidelines:
Ceiling-Mounted Installation:
- Install smoke detectors at least 4 inches from walls
- Maintain proper spacing (typically 30-foot maximum)
- Avoid dead air spaces near corners
- Keep away from HVAC registers and air returns
Wall-Mounted Installation:
- Mount 4 to 12 inches below ceiling
- Ensure nothing obstructs detection chamber
- Follow manufacturer's mounting instructions
Special Considerations:
- Sloped ceilings: Install within 3 feet of peak
- High ceilings: May require beam smoke detectors or aspirating systems
- Harsh environments: Use specialized detectors rated for conditions

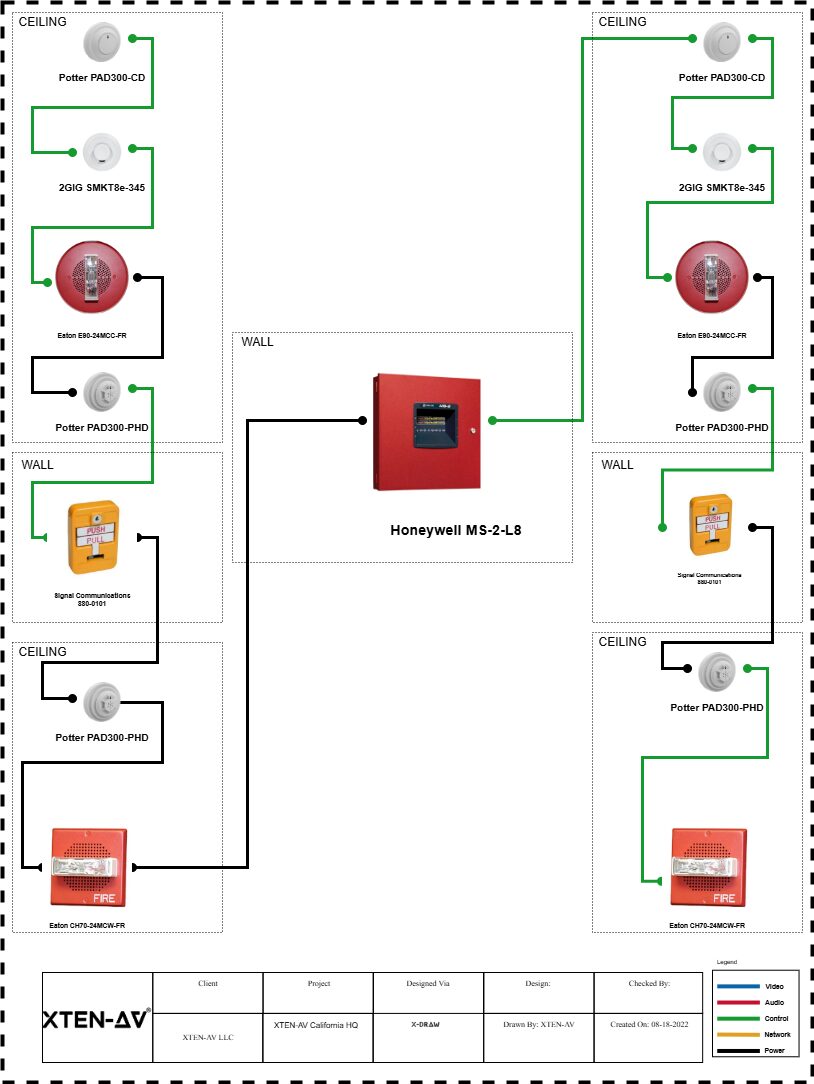

Wiring and Circuit Installation
Fire alarm wiring must meet stringent requirements:
- Use fire-rated cable (FPLR, FPLP, or CI cable)
- Install in conduit where required by code
- Maintain electrical supervision of all circuits
- Follow proper color coding and labeling
- Ensure adequate circuit capacity for future expansion
Installing Notification Appliances
Strategic placement of audible and visual devices:
- Ensure sound pressure levels meet 75 dBA minimum (or 15 dB above ambient)
- Visual strobes must provide 75 candela minimum in sleeping areas
- Space devices to provide coverage in all areas
- Install ADA-compliant devices in required locations
Phase 3: System Integration
Connecting to Building Systems
Modern fire alarm systems integrate with multiple building technologies:Integration with av system integration software:
- Coordinate emergency messaging across audio-visual systems
- Automate display screen emergency notifications
- Integrate with digital signage for evacuation instructions
- Link to public address systems for voice evacuation
Building Automation Integration:
- Interface with HVAC systems for smoke control
- Connect to elevator controls for recall operations
- Link with access control for door unlocking
- Coordinate with security systems for event correlation
Emergency Response Integration:
- Connect to central monitoring stations
- Interface with emergency phone systems
- Link to mass notification platforms
- Integrate with first responder communication systems
Programming and Configuration
System Programming Essentials
Fire alarm control panel programming includes:- Device Addressing: Assign unique addresses to all addressable devices
- Zone Configuration: Define logical zones for detection and notification
- Input Programming: Configure detection device parameters and sensitivity
- Output Programming: Set notification patterns and sequencing
- Cause and Effect: Program system responses to various alarm conditions
Setting Up Monitoring and Communication
Configure alarm monitoring:- Program primary and backup telephone lines or IP communicators
- Set up central station monitoring accounts
- Configure automatic notifications to authorities
- Test alarm transmission paths
- Document account numbers and passcodes
Customizing System Responses
Tailor fire alarm responses to building needs:- Program pre-alarm conditions for early investigation
- Set delayed alarm timing where permitted
- Configure staged evacuation sequences for high-rise buildings
- Program special function outputs for equipment control
Testing, Inspection, and Commissioning
Initial System Testing
Comprehensive acceptance testing verifies:Device-Level Testing:
- Test every smoke detector using smoke simulator or magnet test
- Verify heat detector operation using heat gun or approved method
- Activate all manual pull stations
- Test notification appliance output and coverage
System-Level Testing:
- Verify control panel receives and processes all signals
- Test alarm verification functions
- Confirm supervisory signal reception
- Verify trouble signal operation
- Test backup power supply switchover and capacity
Integration Testing:
- Verify building system interfaces function correctly
- Test av system integration software emergency override
- Confirm elevator recall and door unlocking operation
- Verify HVAC shutdown and damper control
Authority Having Jurisdiction (AHJ) Inspection
Prepare for fire marshal inspection:- Complete all required documentation
- Perform thorough pre-inspection testing
- Have manufacturer's specifications available
- Provide system drawings and battery calculations
- Demonstrate system operation to inspector
- Address any deficiencies identified
- Obtain certificate of occupancy or fire alarm acceptance
Training Building Personnel
Conduct comprehensive operator training:- Control panel operation and monitoring
- Alarm response procedures
- System reset protocols
- Trouble condition investigation
- Reporting requirements
- Record-keeping procedures
Maintenance and Ongoing Compliance
Regular Inspection and Testing Requirements
NFPA 72 mandates specific inspection, testing, and maintenance (ITM) schedules:Weekly: Visual inspection of control panel indicatorsMonthly:
- Test battery voltage and condition
- Verify signal transmission to monitoring station
Quarterly:
- Test notification appliances
- Inspect visible devices
Semi-Annually:
- Test smoke detector sensitivity
- Inspect and clean detectors
- Exercise battery backup
Annually:
- Comprehensive system testing
- Smoke detector sensitivity testing
- Battery load testing
- Full system functional test
Record Keeping and Documentation
Maintain detailed records:- Installation documentation and as-built drawings
- Testing and inspection reports
- Service and maintenance logs
- Battery replacement records
- False alarm documentation
- Training records
Common Maintenance Issues
Address fire alarm system problems promptly:- False alarms from dirty detectors or improper settings
- Ground faults from moisture or damaged wiring
- Battery failures from age or inadequate charging
- Communication failures to monitoring stations
- Device failures requiring replacement
Advanced Fire Alarm Technologies
Addressable vs. Conventional Systems
Addressable fire alarm systems offer significant advantages:- Individual device identification
- Precise alarm location
- Advanced diagnostics
- Reduced wiring requirements
- Enhanced av system integration software compatibility
Conventional systems remain viable for:
- Smaller installations
- Budget-conscious projects
- Simple building layouts
- Retrofit applications
Wireless Fire Alarm Systems
Wireless fire detection provides benefits:- Reduced installation time and cost
- Minimal building disruption
- Flexibility in historical buildings
- Easy system expansion
- Integration with IoT platforms
Intelligent Detection and Analytics
Modern fire alarm systems incorporate:- Multi-criteria detection analyzing multiple environmental factors
- Artificial intelligence for false alarm reduction
- Predictive maintenance through sensor data analysis
- Cloud connectivity for remote monitoring
- Integration with video analytics for verification
Cost Considerations and Budgeting
Installation Cost Factors
Fire alarm system installation costs vary based on:Building Characteristics:
- Square footage and layout complexity
- Number of floors and ceiling heights
- Construction type and accessibility
- Existing infrastructure availability
System Specifications:
- Detection device quantity and type
- Addressable vs. conventional technology
- Voice evacuation vs. standard notification
- Integration requirements with av system integration software
- Monitoring service level
Typical Cost Ranges:
- Residential smoke detector installation: $100-$500 per device installed
- Small commercial systems: $2,000-$10,000
- Mid-size buildings: $10,000-$50,000
- Large facilities: $50,000-$500,000+
- High-rise buildings: $500,000-$2,000,000+
Return on Investment
Consider long-term value:- Insurance premium reductions (10-40% typical)
- Property value increase
- Life safety enhancement
- Business continuity protection
- Reduced fire damage and recovery costs
Common User Queries About Fire Alarm Installation
1. How many smoke detectors do I need for my building?
The number of required smoke detectors depends on your building's size, layout, and occupancy classification. NFPA 72 generally requires smoke detector installation in:- Every sleeping room
- Outside each sleeping area
- Every level of the building
- Common areas and hallways
For commercial buildings, spacing typically allows maximum 30-foot coverage radius per detector on smooth ceilings. Consult NFPA 72 Chapter 17 for specific spacing requirements based on ceiling height, air movement, and detector type. A professional fire alarm designer should calculate exact requirements using room dimensions, ceiling configurations, and applicable codes.
2. Can I install a fire alarm system myself, or do I need a licensed professional?
While residential smoke detector installation for battery-operated units is often DIY-friendly, fire alarm system installation for monitored systems or commercial applications typically requires:- Licensed fire alarm contractor with state/local credentials
- Proper permits from the fire marshal and building department
- Professional design meeting NFPA 72 requirements
- Third-party inspection and acceptance testing
- Connection to approved monitoring station
3. What's the difference between smoke alarms and smoke detectors?
Smoke alarms are self-contained units with integrated detection and notification in a single device, typically battery-powered or hardwired with battery backup. They're common in residential applications and don't require a fire alarm control panel.Smoke detectors are components of a larger fire alarm system, sending signals to a control panel that manages notification devices, monitoring, and building integrations. They're used in commercial fire alarm systems and offer:- Centralized monitoring and control
- Integration with sprinkler systems and building automation
- Addressable identification of alarm locations
- Connection to central monitoring stations
- Compatibility with av system integration software
4. How often should fire alarm systems be tested and maintained?
NFPA 72 mandates specific testing frequencies:Visual Inspections: Weekly for control panels, quarterly for devices Functional Testing: Monthly for battery condition, quarterly for notification devices Sensitivity Testing: Annual for smoke detectors Full System Testing: Annually with comprehensive documentationCommercial buildings must maintain detailed records and often require third-party fire alarm inspection services. Smoke detector installation should include establishing a maintenance schedule. Many jurisdictions require professional annual fire alarm inspections by licensed technicians who understand building automation, av system integration software, and current code requirements.5. What causes false alarms and how can they be prevented?
Common false alarm causes include:Environmental Factors:- Cooking smoke or steam reaching detectors
- Dust or debris in detection chambers
- High humidity or temperature extremes
- Aerosol sprays or cleaning products
- Improperly adjusted sensitivity
- Aging or failing detectors
- Inadequate smoke detector installation locations
- Electrical interference or ground faults
- Regular cleaning and maintenance
- Proper detector selection for environments
- Correct placement away from known sources
- Multi-criteria detection technology
- Verification delays where permitted
- Professional sensitivity testing
- Integration with video verification systems
6. Can fire alarm systems integrate with other building technologies?
Modern fire alarm systems offer extensive integration capabilities:Building Systems Integration:- HVAC for smoke control and pressurization
- Elevator controls for emergency recall
- Access control for door unlocking
- Emergency lighting coordination
- Security systems for event correlation
- av system integration software for emergency messaging
- Building management systems (BMS) for centralized control
- IP-based communication for remote monitoring
- Mobile apps for instant notifications
- Cloud platforms for analytics and reporting
- Voice evacuation integrated with PA systems
7. What are the requirements for high-rise building fire alarm systems?
High-rise buildings (typically over 75 feet) require specialized fire alarm systems:Enhanced Detection:- Comprehensive smoke detector installation in all areas
- Duct smoke detectors in HVAC systems
- Elevator lobby and machine room detection
- Stairwell pressurization system monitoring
- Voice evacuation systems with live communication capability
- Staged evacuation programming
- Fire command center with system control
- Firefighter telephones throughout the building
- Visual notification meeting ADA requirements
- Elevator recall to designated floors
- HVAC smoke control sequences
- Stairwell pressurization activation
- Emergency power transfer monitoring
- Integration with building automation and av system integration software
8. How do wireless fire alarm systems compare to traditional wired systems?
Wireless Fire Alarm Systems offer several advantages and considerations:Advantages:
- Reduced installation time (up to 70% faster)
- Lower labor costs for smoke detector installation
- Minimal building damage and disruption
- Flexibility in historical or challenging buildings
- Easier system expansion and reconfiguration
- Reduced material costs (no conduit or fire-rated cable)
Considerations:
- Battery maintenance for wireless devices
- Potential RF interference in some environments
- Initial equipment costs may be higher
- Range limitations in large buildings
- Some jurisdictions have specific approval requirements
Best Applications: Retrofits, historical buildings, buildings with limited access, temporary facilities, and locations where traditional wiring is impractical. Modern wireless systems meet NFPA 72 requirements and integrate effectively with building management systems and av system integration software.
Real-World Case Studies
Case Study 1: Multi-Tenant Office Building Upgrade
Project Overview: A 12-story, 150,000 sq ft office building in downtown Chicago required fire alarm system modernization to meet updated code requirements and improve tenant safety.Challenges:
- Outdated conventional fire alarm system lacking addressability
- No integration with building automation system
- Limited voice evacuation capability
- Frequent false alarms disrupting operations
- Inadequate smoke detector installation in new tenant spaces
Solution Implemented:
- Installed modern addressable fire alarm control panel
- Comprehensive smoke detector installation using multi-criteria detectors
- Integrated voice evacuation system with av system integration software
- Connected to BMS for HVAC and elevator control
- Implemented cloud-based monitoring for facility management
Results:
- False alarms reduced by 85%
- Emergency response time improved by 40%
- Insurance premiums decreased by 25%
- Enhanced tenant satisfaction and retention
- Achieved LEED Gold recertification with improved safety systems
- Full ROI achieved within 4 years through insurance savings
Case Study 2: Hospital Wing Expansion with Advanced Integration
Project Overview: Major medical center added 5-story patient tower requiring state-of-the-art fire protection integrated with existing campus infrastructure.Challenges:
- 24/7 operations during construction
- Strict healthcare code requirements
- Need for silent alarm modes in patient areas
- Integration with nurse call systems, av system integration software, and medical equipment
- Zoned notification for progressive evacuation
Solution Implemented:
- Addressable analog fire alarm system with advanced diagnostics
- Aspirating smoke detection in critical areas
- Customized notification including visual-only zones in patient rooms
- Integration with nurse call, building automation, and emergency power systems
- Redundant communication paths to monitoring center
- Real-time status monitoring through facility management software
Results:
- Zero disruption to patient care during installation
- Compliance with NFPA 101 Healthcare Occupancies requirements
- Seamless integration with existing campus-wide fire alarm network
- Enhanced emergency response protocols for vulnerable populations
- Joint Commission accreditation maintained throughout project
- Model system for future campus expansion projects
Case Study 3: Historic Building Renovation with Wireless Technology
Project Overview: 100-year-old landmark building conversion to boutique hotel required fire protection without damaging historical features.Challenges:
- Historical preservation restrictions limiting wall penetrations
- Ornate plaster ceilings and woodwork
- No existing electrical or communication pathways
- Need for discrete device placement
- Limited construction access and timeline
Solution Implemented:
- Wireless fire alarm system with historic-appropriate device covers
- Strategic smoke detector installation preserving architectural integrity
- Wireless manual pull stations in decorative enclosures
- Integration with hotel management system and av system integration software
- Discrete notification appliances custom-matched to interior finishes
- Battery-powered devices minimizing electrical work
- Installation completed 60% faster than wired alternative
- Zero damage to historical features
- Approval from historical preservation board
- Full code compliance with NFPA 72 and local requirements
- Flexible system easily adapted to room reconfigurations
- Project featured in preservation architecture publications
Conclusion
Fire alarm system installation represents one of the most critical investments in protecting lives, property, and business operations. From basic smoke detector installation in residential settings to complex integrated fire protection systems in high-rise buildings, proper planning, professional installation, and ongoing maintenance are essential for reliable performance.This comprehensive guide has covered the fundamental aspects of fire alarm installation, including system components, design considerations, installation procedures, integration with modern technologies like av system integration software, testing requirements, and maintenance protocols. Understanding these elements helps property owners make informed decisions about their fire protection systems and ensures compliance with NFPA 72 and applicable building codes.
Key takeaways include:
- Professional fire alarm system installation is critical for life safety and code compliance
- Proper smoke detector installation and placement dramatically improves fire detection effectiveness
- Modern systems integrate with building automation, security systems, and emergency communication platforms
- Regular testing and maintenance are legally required and operationally essential
- Advanced technologies like addressable systems, wireless detection, and intelligent analytics enhance protection
- Integration with av system integration software provides comprehensive emergency communication
Whether you're planning a new installation, upgrading an existing system, or simply maintaining current fire protection equipment, working with qualified professionals ensures your fire alarm system provides reliable, code-compliant protection for years to come.
Remember: fire alarm systems save lives. Invest in proper installation, maintain systems diligently, train occupants thoroughly, and never compromise on fire safety. Your proactive approach to fire protection may one day prevent tragedy and protect everything you've worked to build.
For professional fire alarm installation services, system design consultation, or compliance assistance, consult licensed fire protection contractors who understand local requirements, current technologies, and industry best practices. Your safety is worth the investment in expertise.
