How Do Cold Spark Machines Work? A Complete Guide

Cold sparkler fountains have become one of the most sought-after special effects in the events industry. Whether it’s a bride and groom sharing their first dance surrounded by shimmering golden sparks, a DJ dropping the beat under a burst of light, or a corporate product launch revealing its star attraction, these machines create a moment of pure visual magic.

Unlike traditional pyrotechnics, cold spark machines produce their spectacular effect without using fire, explosives, or high temperatures that could burn guests or ignite materials. They are a safe, reusable, and venue-friendly alternative to fireworks, perfect for both indoor and outdoor use.

But while they may be called “cold,” there’s still a sophisticated heating process happening inside. In this complete guide, we’ll explain exactly how cold spark machines work, why they’re safe, how they’re used, and what to consider if you’re planning to rent or buy one. You’ll also learn about maintenance, safety certifications, and an example of a professional-grade model — the Rasha Professional Allsparx.

1. What is a Cold Spark Machine?

A cold spark machine is a special effects device designed to produce a vertical shower of bright, golden sparks without traditional combustion. It is a controlled, electrically powered system that uses metallic granules instead of gunpowder or flammable chemicals.

Key Features

• Safe for Indoor Use: Produces minimal heat and virtually no smoke.

• Reusable: Operates using replaceable cartridges of spark powder.

• Controlled Output: Adjustable height, timing, and duration.

• Professional Presentation: Produces consistent effects with precise control.

Core Components

1. Powder Cartridge

   • Contains proprietary spark powder made from a titanium alloy.

   • Granules are safe to handle before use, but only official cartridges should be used to avoid damage or unsafe performance.

   • Each cartridge lasts around 12–15 minutes of total spark time, depending on usage.

2. Heating Chamber

   • Electrically heats the metallic granules until they produce glowing particles without igniting them like fireworks.

3. Air Blower System

   • Directs the heated particles upward in a controlled spray.

   • The blower speed and angle help determine the height of the sparks.

4. Control Interface

   • DMX Control for lighting and effects synchronization.

   • Wireless Remote for standalone operation.

2. The Science Behind the Sparks

Cold spark machines operate on the principle of controlled thermal processing of metallic granules.

Here’s the simplified science:

1. Heating: Titanium alloy granules are brought to a temperature high enough to glow but low enough to avoid full combustion.

2. Particle Breakup: Small glowing fragments break off due to heat stress.

3. Projection: The machine’s blower propels these glowing particles vertically into the air.

4. Cooling: As the sparks travel upward and fall back, they lose heat quickly — typically cooling to between 62°F and 122°F before they descend.

Step 1: Position & Secure the Machine

• Place the unit on a flat, stable surface.

• Ensure safe distances: 10–15 feet from guests, and more if indoors with low ceilings.

Step 2: Connect to Power

• Most units run on standard 110V or 220V outlets.

• Avoid sharing circuits with high-draw equipment.

Step 3: Warm-Up

• Switch on the machine and allow 3–5 minutes for the heating chamber to reach optimal temperature.

Step 4: Load the Cartridge

• Insert the official manufacturer’s spark powder cartridge.

• Lock it securely to prevent spills.

Step 5: Connect Control System

• DMX: Integrate with a lighting console for fully synchronized shows.

• Remote: Use for quick, standalone effects.

Step 6: Trigger the Effect

• Activate via control system.

• The heating chamber releases glowing metallic particles, and the blower projects them vertically.

Step 7: Adjust Settings

• Set desired spark height (3–16 feet) and duration (seconds to minutes).

Step 8: Shutdown

• Switch off heating element.

• Let fans run for 2–3 minutes to cool components.

Step 9: Remove & Store Powder

• Empty unused granules into an airtight container.

• Store cartridges in a dry, cool location.

4. Safety Mechanisms in Cold Spark Machines

Manufacturers design these machines with multiple built-in protections:

• Overheat Protection: Shuts off the heating chamber if temperatures exceed safety limits.

• Safety Lock Cartridges: Prevent accidental ignition or loading of incompatible powder.

• DMX Safety Channel: Requires an “arm” command before activation.

• Temperature Regulation: Ensures particles are cool enough for audience proximity.

• Certification Compliance: Some models meet NFPA 1126 indoor pyrotechnic safety standards.

Safety Distance Recommendation:
Keep 10–15 feet from people and flammable materials. Increase to 20 feet for high-output models.

5. Popular Use Cases

Cold spark machines are used across a range of events:

1. Weddings

   • First dance, couple’s entrance, or exit.

   • Example: Four machines positioned at each corner of the dance floor for a 10-second synchronized burst.

2. DJ & Performer Sets

   • Triggered in sync with music drops for dramatic effect.

3. Corporate Events

   • Product reveals, award ceremonies, or grand openings.

4. Concerts & Festivals

   • Combined with lighting and CO₂ jets for stage energy.

5. Theater & TV Productions

   • Safe pyrotechnic simulation for indoor scenes.

6. Maintenance & Care

To keep a cold spark machine in optimal condition:

After Each Use:

• Clean nozzle with a soft brush.

• Wipe casing to remove dust or residue.

• Empty leftover powder into a sealed container.

Every 10–15 Uses:

• Inspect fan blades for debris.

• Check DMX inputs for dust.

• Examine power cables for wear.

Storage:

• Keep cartridges dry.

• Avoid extreme heat or humidity.

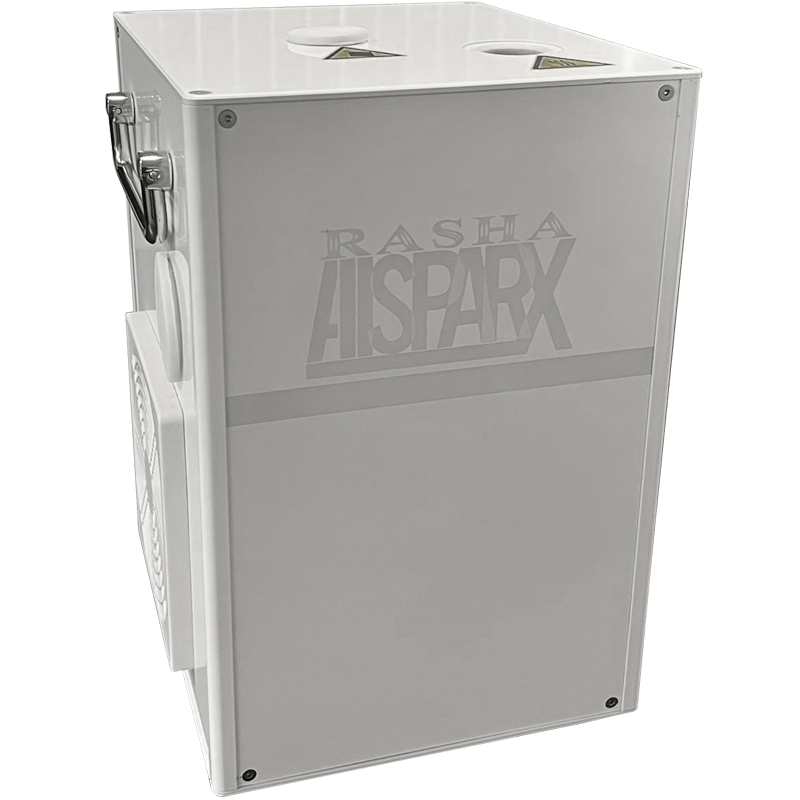

7. Example Machine: Rasha Professional Allsparx

The Rasha Professional Allsparx is a reliable, professional-grade cold spark machine.

Key Specs:

• Spark height: 3–16 feet

• Control: DMX & wireless remote

• Cartridge size: 200g

• Safety: Overheat protection, locking cartridge slot

• Indoor/Outdoor rated

Why it’s trusted:

• Consistent output

• Strong safety record

• Suitable for weddings, concerts, and corporate events

8. Pros & Cons

• "Cold" means touchable – Sparks are cooler than fireworks but can still be hot.

• Same as fireworks – No combustion or explosions here.

• Can use anywhere without restrictions – Always check venue rules.

10. FAQs

Q1: Are cold spark machines completely safe to touch?
A: No. They are safer than fireworks but still warm enough to cause discomfort.

Q2: Can I use cold sparkler fountains indoors?
A: Yes, provided the venue allows and safety guidelines are followed.

Q3: How long does a cartridge last?
A: 12–15 minutes total, depending on effect duration.

Q4: Are they noisy?
A: Only a low fan hum and gentle crackle.

Q5: Can I use them in rain?
A: Only if outdoor-rated and powder stays dry.

Q6: What’s the difference between DMX and remote?
A: DMX integrates with lighting cues; remote is standalone.

Q7: Do they produce smoke?
A: Minimal, usually negligible.

Q8: How do I clean them?
A: Brush residue, wipe casing, and store cartridges properly.

Q9: What’s the minimum operator age?
A: Typically 18+, or trained under supervision.

Q10: Can sparks damage cameras?
A: Maintain safe distances to avoid heat or residue contact.
